United States Frigate Essex

Following is some general information about the 12-pounder frigate, the Essex.

For information about the model click here.

The Essex was a 12-pounder frigate built in Salem, Massachusetts, at the Enoch Briggs shipyard from a design by Willam Hackett. The ship was paid for by public subscription (over $139,000), was launched in 1799, and was presented as a gift to the United States from the people of Salem and Essex counties in Massachusetts.

Essex Specifications:
Length: 138' 3"
Beam: 37' 3"
Draft: 12' 3"
Displacement: 850 long tons
Complement: 300

There is some disagreement about the armament of the Essex. She is generally rated as a 32 to 36 gun ship, and referred to as a 12-pounder frigate. The most popular understanding however is that she was armed at launch with 32 pounder carronades, about 40 in number, and a few 12 pounder long guns on the quarter deck and forecastle.

However, there is another opinion that she was initially armed with 12 pounder long guns for the main battery with some 12 pounders and 6 pounders on the quarter deck and forecastle. Folks of this camp think she kept that configuration through most of her American career, and changed to carronades only later, perhaps before her Pacific tour. Either way, in the end, Essex was captured after a battle with the British Frigate HMS Phoebe, a 36 gun frigate with 18 pounder long guns in the main battery and the HMS Cherub, an eighteen gun sloop. Because carronades were regarded as short range guns and inaccurate at longer distances, Essex's battery configuration is perhaps the explanation for her defeat and capture by the British in 1814. She was captured after a long battle in which the British long guns could fire on the Essex, but her guns could not reach the enemy due to their short range. In any case, up against an eighteen-pounder frigate and an accompanying sloop, Essex was certainly out-gunned and out-numbered.

Essex fought in the "Quasi-war" with France (under Edward Preble 1799-1801), and during that time sailed from Newport, Rhode Island, along with USS Congress, to Batavia, Dutch East Indies, to escort a convoy back to the US. On the outbound voyage, Congress suffered storm damage to her masts and spars and had to return to port for repairs, leaving Essex to continue the voyage alone. Thus she became the first US Naval vessel to cross the equator and the first to "double" the Cape of Good Hope, rounding it on the way out and the way back.

Under William Bainbridge (1801-1802) she served in the Mediterranean during the war with the Barbary Powers, returning to refit at the Washington Navy Yard in 1802 before again servine in the Mediterranean for a second tour in 1804-1806 under Captain James Barron.

She was laid up after 1806 until war was declared with Britain in 1812. Then, under David Porter, she sailed first in the South Atlantic and then the Pacific raiding the British whaling fleet.

Essex decimated the whaling fleet, capturing over thirteen ships in a few months and disrupting whaling commerce in the pacific. And in so doing became quite a problem for the British Navy. The British frigate Phoebe (36), which carried 18 pounder long guns and the sloop Cherub (18) were sent out to protect the British whaling fleet, to recapture whalers taken by the Essex, and, if possible to pursue and capture the Essex.

In February of 1814, the two British ships trapped the Essex in Valparaiso, Chile, a neutral port. Porter, fearing British reinforcements and an attack while in the harbor, attempted to escape, but Essex lost her main top mast and was forced to anchor just outside the mouth of the harbor, technically still in neutral waters. The British ships attacked the Essex shortly after she anchored. For several hours, Phoebe bombarded Essex at long range with devastating effect. Essex caught fire and lost 50 men killed with 31 missing (of a crew of 214). Porter was forced to surrender.

Essex was taken into the British Navy as HMS Essex, re-armed with 18 pounder long guns and classified as a 42 gun frigate, but never saw action. She was sold at auction in 1837.

The story of the Essex was the basis for the plot of the Patrick O'Brian book "The Far Side of the World", (1984), tenth in the Aubry-Maturin series of novels. In that book, the HMS Surprise (28), an aging 12 pounder frigate, is sent to the Pacific to protect the British whaling fleet from the USS Norfolk, a larger American frigate raiding the fleet. O'Brian was just building an American readership at the time of the publication of this book, so there is not a battle between the Surprise and the Norfolk. Norfolk ends up destroyed when run aground during a storm, and Surprise recaptures some of the British whalers. O'Brian based the exploits of the fictional Norfolk on the actual accomplishments of the Essex.

In the movie, "Master and Commander, The Far Side of the World", (2003), the plot of the movie further departs from the book, adding characters and events from other novels in the series, and the commerce raider that Surprise is sent to capture is an American-built (in Boston), French privateer, the Acheron. The movie includes details of the design and construction of the Acheron that clearly are based on the USS Constitution.

Building the Essex from Takajian's plans

The Essex is a good subject for a ship model, as excellent plans for her exist - one of the benefits of being captured by the British. (see below) At the time Essex was built, most ship yards did not work from detailed plans or keep detailed records of materials used in building any particular ship or details of the design of the ship.

There were methods of diagramming a ship's hull, and in the case of Essex, a plan does exist, attributed to William Hackett, a prominent ship designer of the time. Such plans as there were, consisted of an excellent system of drawing the hull which specified the shape in three dimensions by showing cross sectional shapes at specified intervals, starting at the largest/widest portion of the hull, plus horizontal longitudinal sections also at specified intervals, and a detailed side view of the hull, which specified size and location of frame-members, location of masts, and certain other details. Because the horizontal section locations were also shown on the cross section profiles, and on the side profile, the system was keyed together and clearly defined the three dimensional shape of the hull. This plan or draft is often referred to as a ship's "lines".

When a ship was built, however, the lines of the hull on the plan were first used to build a scale model of the hull, then the scale model was used to make larger templates in a process called "lofting". The shipwrights then used the larger templates to make up the frames for the hull, defining its final shape. The process had plenty of opportunity for variation from the original design as conceived by the ship designer. The variation could happen from error in transferring the design from one form to another - paper plan to solid model to working template - and also because the people working the processes often had ideas of their own about what a ship should look like and might modify the shape to better fit their judgement about how the vessel should look.

In many cases, particularly with privately commissioned merchant vessels, a buyer simply approached a ship yard and ordered a vessel "like" one the yard had previously built, one that had performed well or otherwise had a good reputation. The buyer might want the new ship "bigger", or "sharper" or with some feature(s) to be added, but many shipyards depended on the skills and knowledge of the lofters and the ship wrights to build and in some cases to design the ship.

Upon the formation of a United States Navy, with the Naval Act of 1794, things got more formal pretty rapidly, with the design of the first frigates authorized by that Act standardized to a design by Joshua Humphreys. The Essex, however, was built outside the Naval contract process, as a private venture, so records are a bit scanty.

During the late 16th century through the mid 20th century, the British Royal Navy compensated and rewarded the crews of its ships through "prize money" after capture of an enemy vessel, whether it was a warship, a privateer, or a merchant vessel. When a Navy ship took a "prize", the vessel captured was evaluated through a very formal process involving an Admiralty Prize Court. If a merchant vessel was captured, the evaluation included the vessel and the cargo. For a war ship, the evaluation was based on a "fair price" for the ship if it were repairable and might be acceptable to be purchased by the Admiralty, and also included payments for each enemy sailor captured or killed. The prize money was divided among the officers and crew of all vessels participating in the capture and could be considerable, often more than a year's earnings for ordinary seamen and a fortune for the officers.

The evaluation process included a detailed "survey" of the vessel, including "taking off the lines" and an inventory of the structure of the ship, types of wood, details of construction, and so forth, as well as detailed drawings of equipment and ornamentation. These "admiralty plans" of prizes are maintained to this day by the British Navy and are an excellent source of plans of captured ships, particulary American ships of the Revolution and the War of 1812. In fact, these are probably the only good source of plans for early American ships. So the capture of the Essex resulted in excellent plans for today's modeler.

Portia Takakjian (1930-1992)

Portia Takakjian was a well known ship model builder who lived most of her life in upstate New York. Her initial training was in art, and in her early careers she worked as a fashion model and children's book illustrator and a draftsperson. She became interested in ship modeling through her sons.

Ms. Takakjian was known for the high quality of her models and her research. She published numerous articles on naval history and architecture and on ship modeling in Model Ship Builder magazine. Her book on the USF Essex, part of the "Anatomy of the Ship" series from Conway press was published posthumously in 2005. It is a remarkable book, perhaps the best of the series on 18th century sailing warships. The author thoroughly researched the plans for the ship and presents details of the construction of the hull and furnishings in remarkably fine drawings. She was working on a second book for the series, on the Raleigh (1778), at the time of her death.

The plans and the book by Takakjian are the basis for my model of the Essex.

I built the model using oak for keel, stem and stern posts, and poplar for the frames. Takakjian had used double frames at intervals and I did the same, as shown in her plan. If doing the model again, I would not use poplar, but rather hard maple, as it is stronger and works better than poplar, and I would not double the frames, but go with a more traditional "make and space". I constructed the hull in the traditional way, setting up the keel, stem and stern posts, on a building board, then erecting the straight frams on the keel, using a sliding support to keep the frames square and plumb. Then I added the cant frames fore and aft, and filled in with hawse timbers, transoms, and deadwood. You can see an example of the sort of building jig I use for this method in the discussion of shop methods on the Ship Modeling Page. As mentioned elsewhere, I now much prefer building by the "Hahn method". See information on the model of the USF Raleigh for more information on that way of framing and planking a hull.

I planked the hull with red oak. In this case, I planked one side (starboard) fully, but left the other side planked only from the wales up to show the frames. I am aware that oak is a wood most model builders advise against using for ship models, but I mill the wood myself so I can pick and choose the boards to use and select them carefully when milling for planks. Admittedly, there is a lot of waste wood but I find the oak works well for keel, stem and stern posts, planking and some trim. The reason I first used the oak and maple for models was that both woods grew on our farm and could be harvested there. So I had an inexpensive source of both varieties, and a supply that has lasted until 2019, so far.

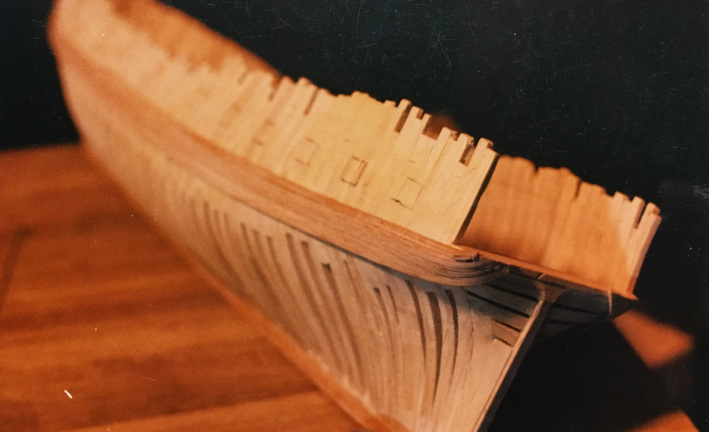

Once the frames were set up and faired inside and out, I planked the outside, starting with the wales on both sides, then the garboards. I planked one side (starboard) completely, and the other side incompletely, leaving a broad stretch unplanked. As mentioned below, I had intended to completely furnish the interior at first, but decided against it, for reasons given. Here are some shots of the planking of the hull. The nice "tuck" of the wales and adjacent planks at the stern/wing transoms is particularly attractive. At least to a ship modeler.

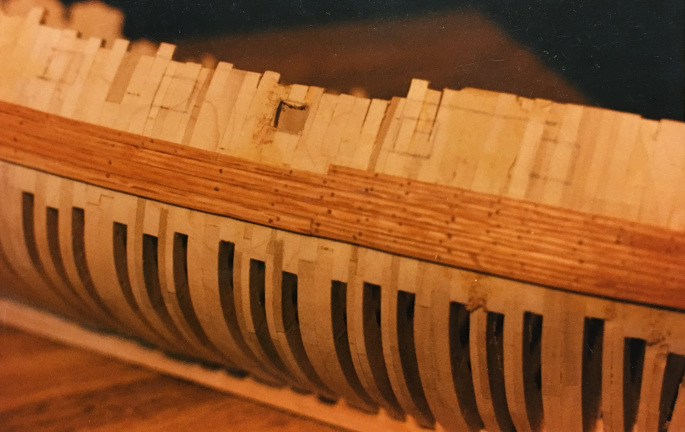

planking the wales
additional planking
planking of the wales at stern
As I worked up the sides, I added the various trim and built the gaps for later installation of the channels. I also laid out the gun ports and cut the openings for them.
Once the outside of the hull was as planked as I wanted, I intstalled ceiling on the finished (starboard) side and the clamps for the decks on both. Then I started timbering for the decks. On this model I did build the orlop deck, timbering and all. You can see it in some of the pictures belos. I then installed the timbers for the berth deck and planked half of it after the hatch coamings and any other deck furniture, bitts, and so forth were in place. Since each deck became pretty much inaccessible once the deck above was timbered, I finished off each as much as I could before moving on to the next level. As I then installed the timbers for the gun deck, I also built the "well" and the risers for the various pumps, as well as the footings for the three masts. I even used some thin copper sheet to make the powder magazine and the adjacent light room. There was more than sufficient information in the Takakjian book for all this detail. I considered also filling the holds with stores and supplies, but decided that would hide much of the detail work I had done timbering the decks. I did model a bower anchor stowed by the well.

In the pictures below, you can see the after part of the planked orlop deck, the slatted partitions in the holds, and the well. If you look toward the stern, you can see the copper lining of the magazine and the elevated footing for the mizzen mast. You can also see the ceiling is installed on one side, and the clamps are in place for the berth deck and the gun deck. I have started placing the main beams of the berth deck amidships and the carlings around the hatches and companionways. Also the lovely curved members/knees beside the hatches. Once all the beams and carlings are in, I will add the purlins, building in any bitts, pumps, ladders, and so forth before planking half of that deck. In this model, I also built a rudder quadrant for the steering gear, but that ended up largely hidden beneath the deck planking of the next deck.

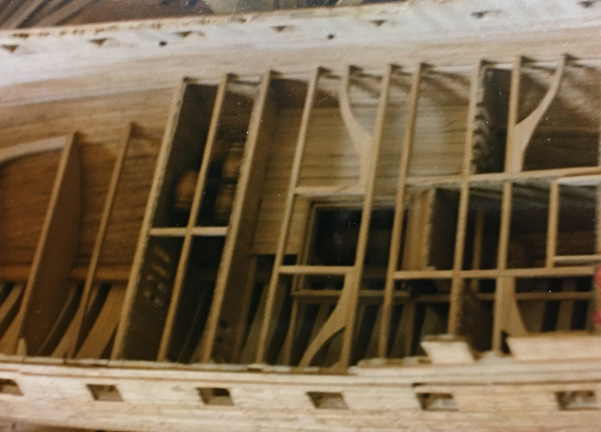

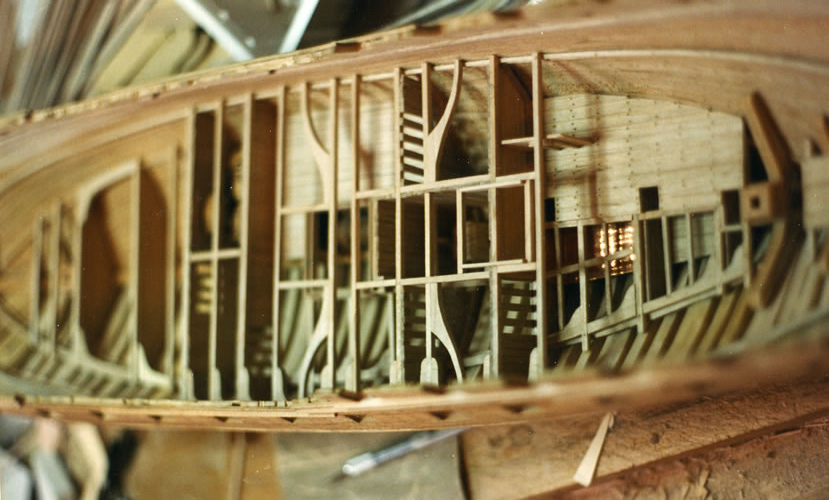

Interior framing of gun deck
Interior framing of gun deck
Interior framing of gun deck

From this point, the process was pretty much a repeat. For each deck, I had installed the clamps to hold the main beams on both sides after putting the ceiling on one side. Then the I did breasthooks and stern hook, then the main beams, heavier for the gun deck, of course, then carlings then knees, both the lodging knees and the hanging knees, and last the purlins. I built the coaming for hatches and installed the various equipment for each deck - the riding bitts, the bitts for the pin rails, capstan, and so forth during this process for the berth and gun decks. I also built the Brody stove and the cannon for later installation on gun deck and spar deck. The cannon are turned from ebony and the carriages are maple. Subsequently, I got a good supply of lignum vitae and began to use it for turning cannon and pully sheaves as well as deadeyes. Lignum is a vastly superior wood for turning and, if you can find the real stuff, get some. You will be very happy with how it works up. The capstans were fabricated from walnut and cherry and maple.

Once the gun deck was timber-framed and half-planked, I finished off the gun ports. On one side, I put in gun port lids and left the other side without. I installed the cannon on the gun deck side with the port lids, in stowed position, run in and secured. I modeled the ship with twelve-pounder long guns, as I suscribe to the idea that she was initially armed that way, with six-pounders on the quarter deck and forecastle. Also, I partitioned off the captain's cabin and the day room, since these will be covered by the quarter deck when it is installed. I also built in sheaves for the tiller ropes and rigged the ropes to the steering quadrant of the tiller and passed them up through the deck timbers to be taken on to the quarter deck and the wheel later.

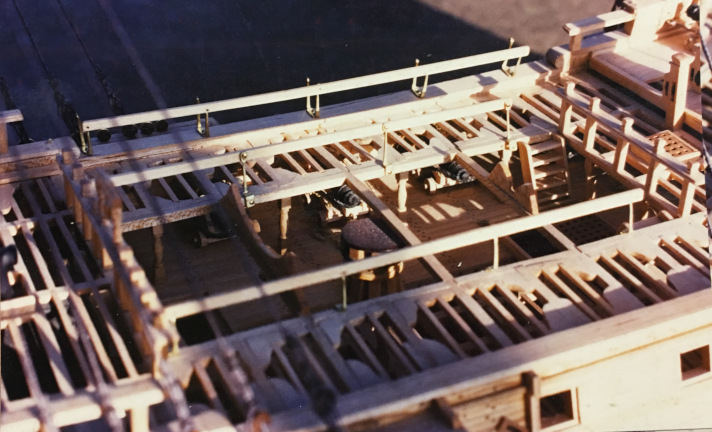

Once the gun deck was pretty much completed, I timbered for the quarter deck and the forecastle and the gangways in the waist. Around this time also I finished off the various railings, adding hammock irons, stanchions and so forth. I also installed the deadeyes for the later rigging. I turned the deadeyes of lignum vitae, which I also used for some of the pulley sheaves in the catheads and bitts. Other sheaves were turned from ebony, which is a great deal less satisfactory, as it is a brittle wood, and chips easily. Lignum vitae turns well and has a natural oil, which lets it polish up nicely after sanding with fine emery paper. I also installed the bowsprit and its bitts before final timbering of the forecastle and did a little detail work on the interior cabins and partitions under the future quarter deck.

I decided to leave the forecastle and the gangways un-planked and to only partially plank the quarterdeck to better show the detail of the interior framing.

Rigging the Essex

I decided to rig the Essex model showing pretty much all the standing rigging and running lines such a ship might have had. This meant adding studding sail booms and hardware to the fore and main yards, (mainsail, topsail, t'gallant yards) and also adding the blocks for sail handling lines including buntlines, leechlines, reefing tackle and the like. I also modeled the mast-head pendants for lifting tackle (Burton Pendants) of the masts, the tackles of the main-stay, and the lifting tackle on the yards.

The first step in rigging the model was to make up the cordage for the rigging. After figuring out what size of lines I needed, I made up a chart. For this model, I decided to use linen for the rigging, which was, in retrospect, a poor decision. Linen is a fragile fiber and will break if bent sharply. So lines tied to eyebolts, for example, may break off at the bolt or at the knot. Also, linen is very reactive to moisture, but gets tighter when wet, looser when dry. The difference in tension of the lines is quite noticible when the humidity changes, and this changing tension makes the tendency to fracture at pinch points even worse. But that was a lesson learned later. I began the process by making up samples for the various lines.

I made the lines up using my rope machine. See the "Ship Modeling in General page for more detail on how I make up rope and cable, and for calculations of the various sizes of line needed. The example used in that section is based on the rigging of the Vandalia, but the calculations for sizes are pretty much universal. The information there is also based on my experiences with cotton, a much better choice of fibre to use for modeling. I have only used "natural" fibres in my rigging - 100% cotton is so far my standard, but I suspect that many of the newer man-made fibres would be as good, maybe better, and last just as long.

I began with the standing rigging, which, after I spun it up, was dyed with leather dye to look "tarred". In general, I rigged the model from stem to stern, rigging first the bow sprit and the lower masts, then I installed top masts and rigged again from stem to stern, working the jib boom and top masts, and so forth.

Here are some photos of the model as I set up the running rigging. Notice that on this model I included the ring-bolts for preventer shrouds.

bowsprit and foremast

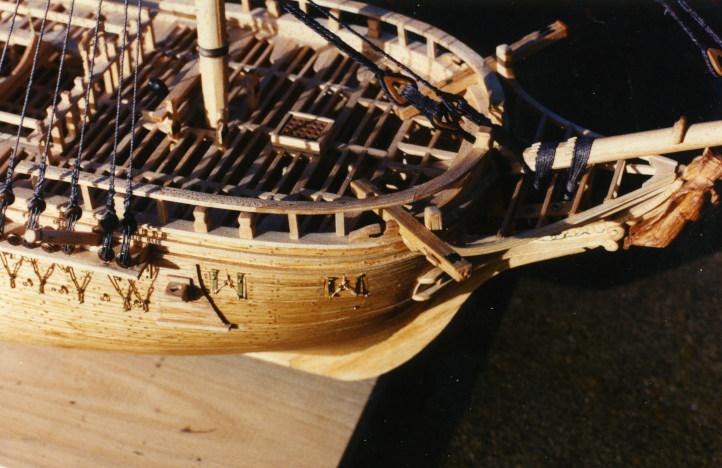

shrouds and stays bowsprit and formast

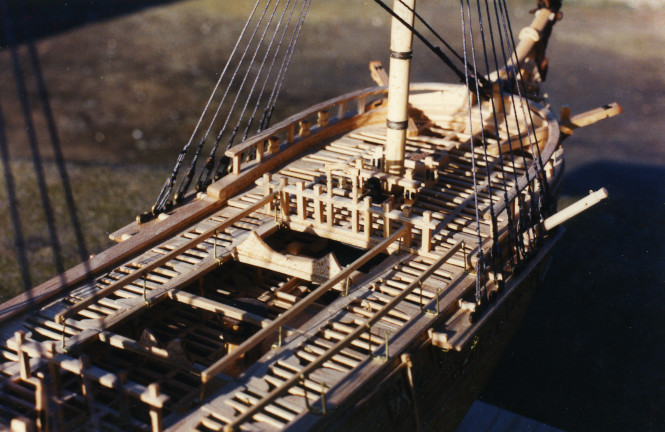

shrouds and stays

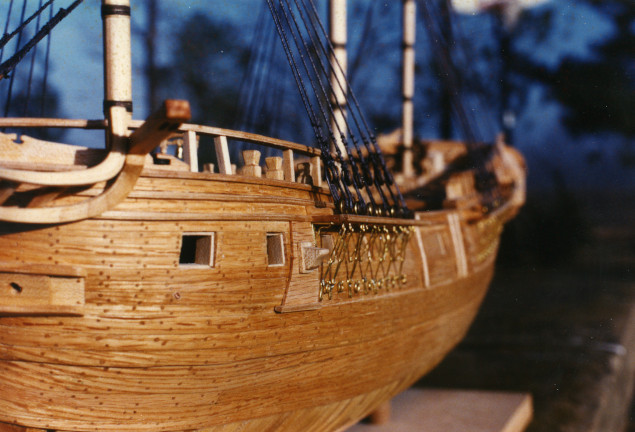

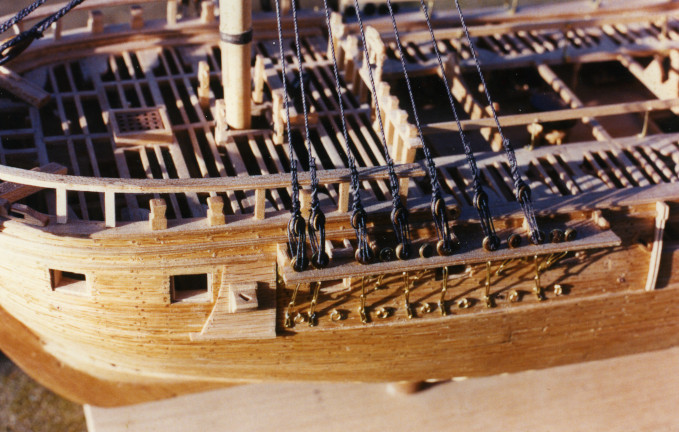

Detail of the foremast shrouds, showing ring bolts for preventer shrouds.

fore mast shrouds

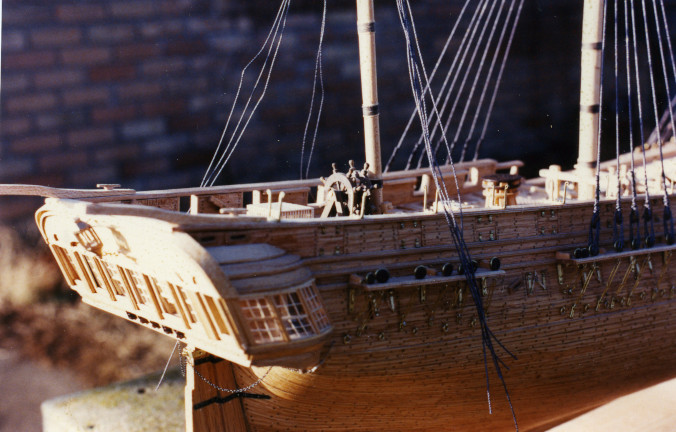

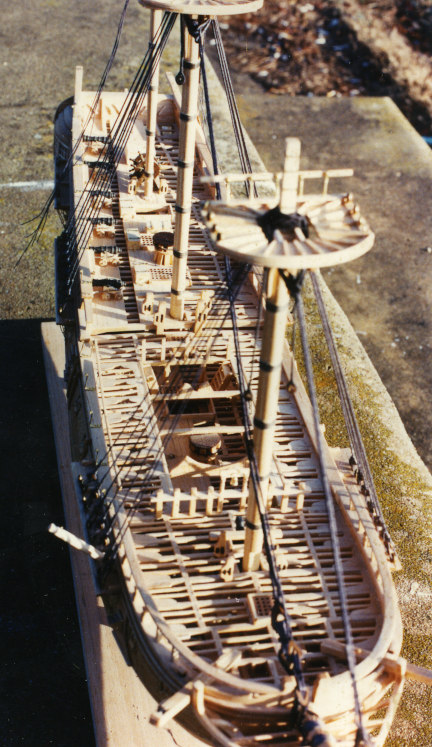

These pictures show the set up of the shrouds for the fore and main masts. Note that I am rigging the lower masts without the topmasts in place, just as the original would have been rigged. Once the lower masts are all rigged I add the top masts and rig them. The last picture in this series shows the mizzen shrouds being rigged.

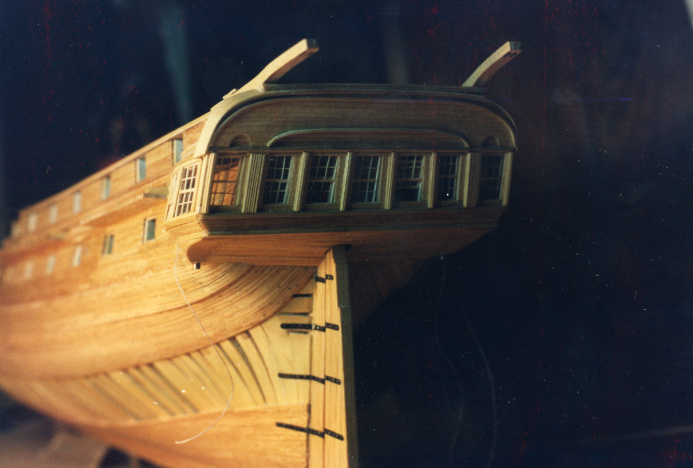

planking at the stern
shrouds fore and main main and mizzen shrouds

Final Rigging of Essex

This series of pictures shows the model after the running rigging is done. Along with a few intermediate shots in process.

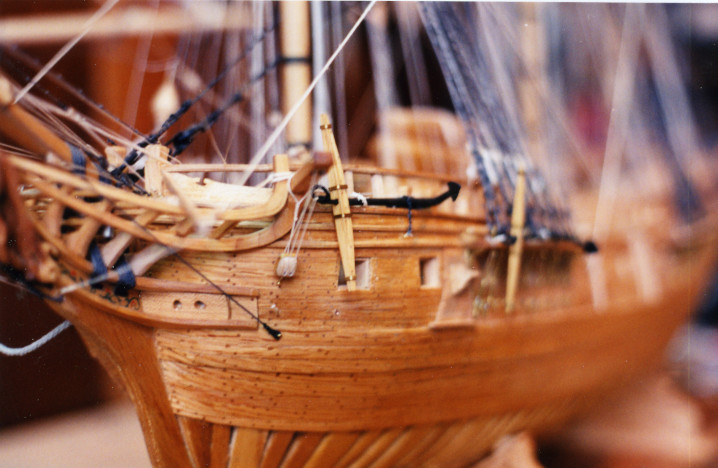

On the portside, ,the anchors are stowed. One is lashed to the fore chains, the more forward on secured to the gunwhales. The heavy block of the cathead lifting tackle is secured to an eyebolt on the hull. The anchor buoy is stowed on the fore shrouds.

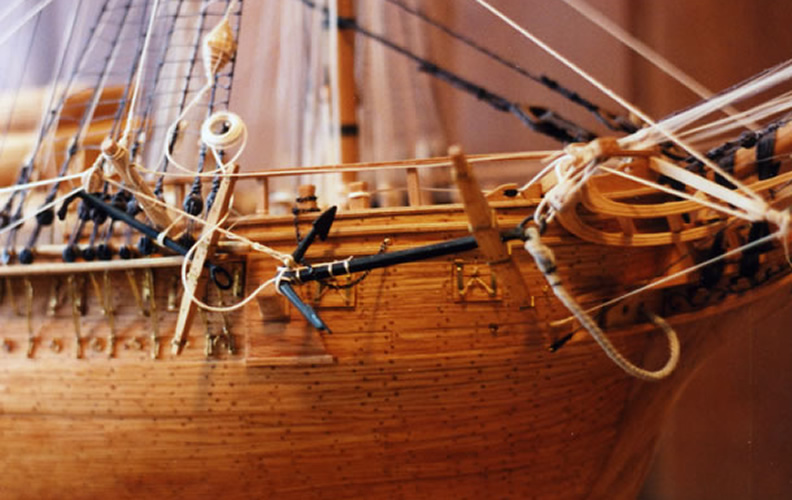

The starboard best bower anchor was shown "fished" and "catted", that is, out of the water, still connected to its cable, held on the hook of the cathead block, and secured to the cathead by a lashing, but also held by the fish tackle. There is a fish davit rigged on that side with the hook of the fishing line on the shank of the anchor and the other end stropped to a large viol block, which makes up the hauling tackle for the fish. The hauling end of the fish tackle block belay leads inboard abaft the waist. The anchor buoy is still attached to the anchor, the buoy line led aloft and the buoy stowed on the fore shrouds. The fish davit and its associated tackle was used to raise the flukes of the anchor without allowing it to contact and damage the hull. Once the anchor flukes are raised, the anchor is secured to the gunwhales or additional tacke is used to move it back to the fore channels.

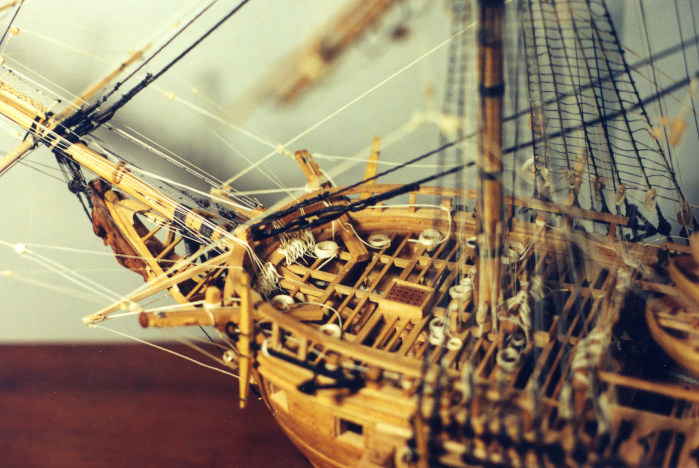

The first few show the bows with the anchors as described above. The ships boats are carved from solid wood and detailed with fine wood and cardstock then painted. They stow on cradles on the timbers of the spardeck in the waist.

starboard bower catted Port view of bows
ships' boats stowed in the waist overview of forecastle deck

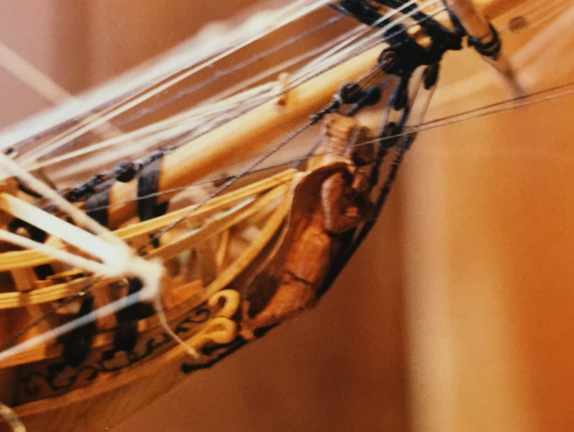

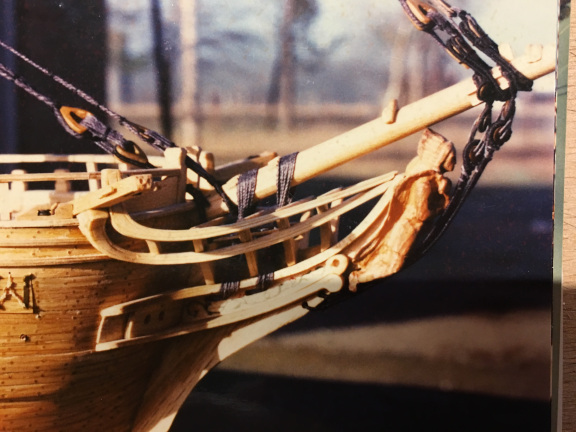

Pictures below show the figurehead before and after adding the running rigging>

figurehead figurehead with rigging

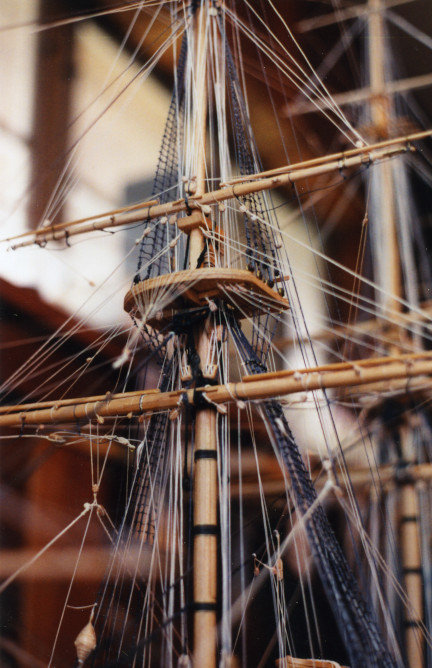

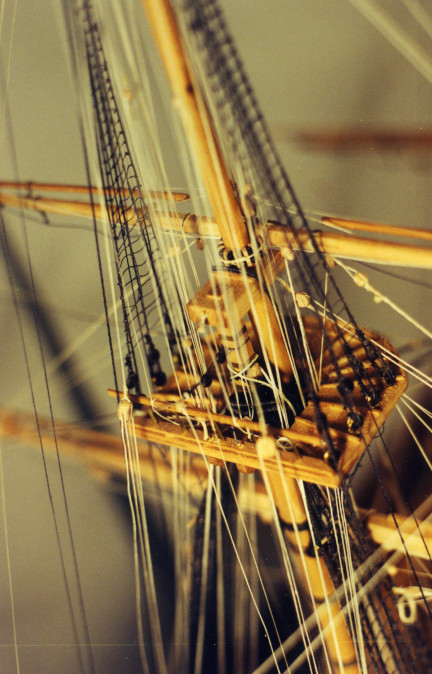

Below are pictures of the fore mast top and the main mast top to show the studding sail booms and the sail handling lines (buntline, leechline) and the lifting tackle on the mainstay. Leechlines and buntlines are attached to cringles on the edges of the sail and lead up to blocks on the yardarm, thence to blocks on the foreward edge of the top, then to blocks on the after edge of the top, then down to belay on the pin rail. Since the mizzen lacks a course, it also lacks these lines. Last is a photo of the mizzen top.

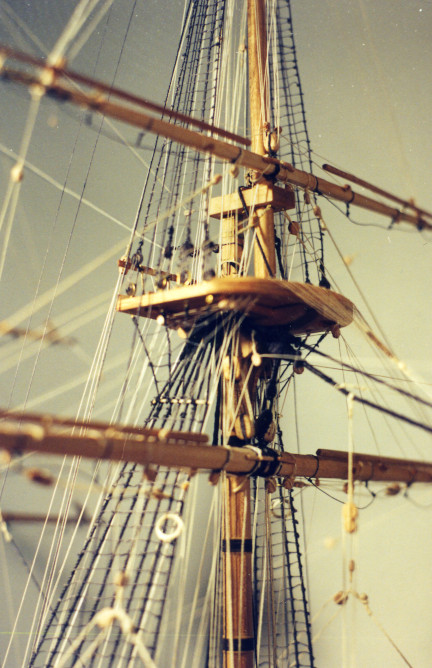

foretop maintop

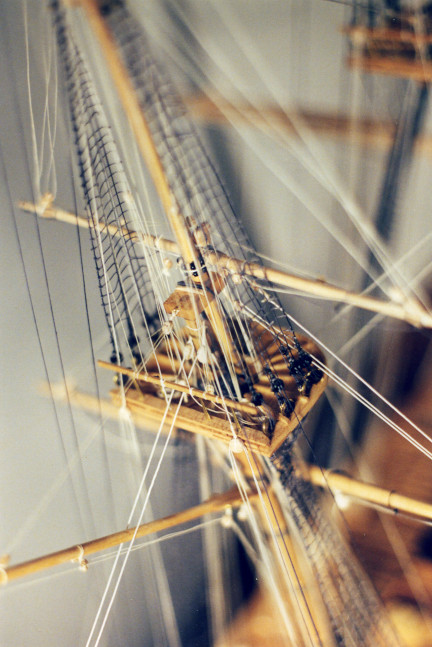

maintop mizzentop

The following pictures are of the finished model. Starting in the waist, and moving back to the quarter deck.

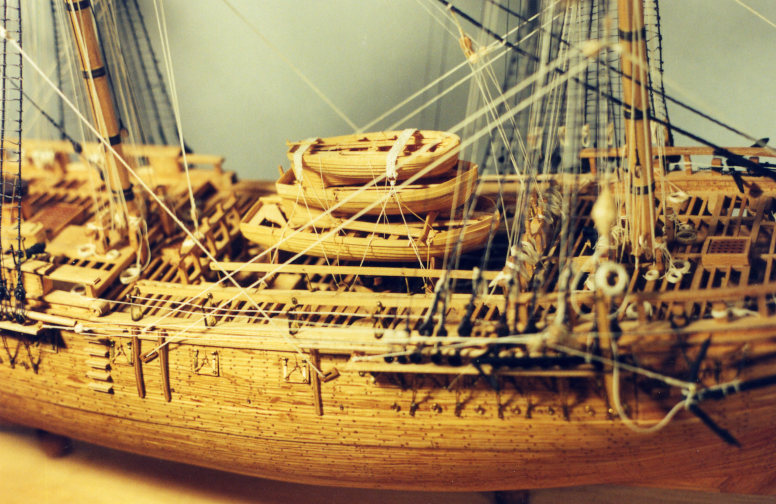

the waist

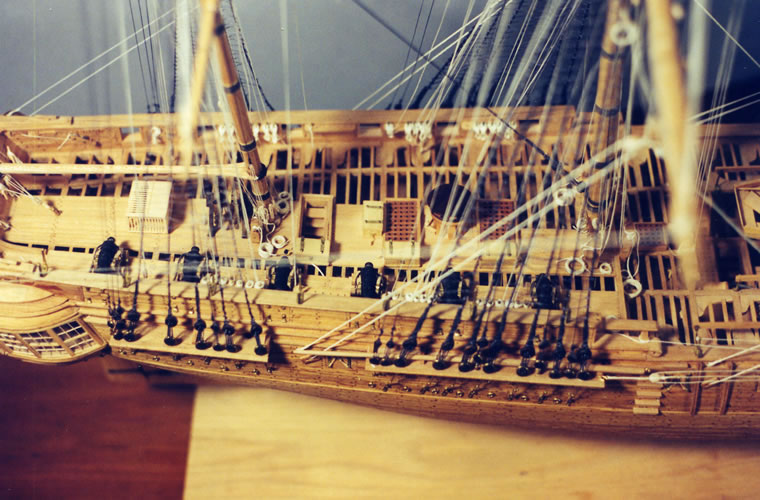

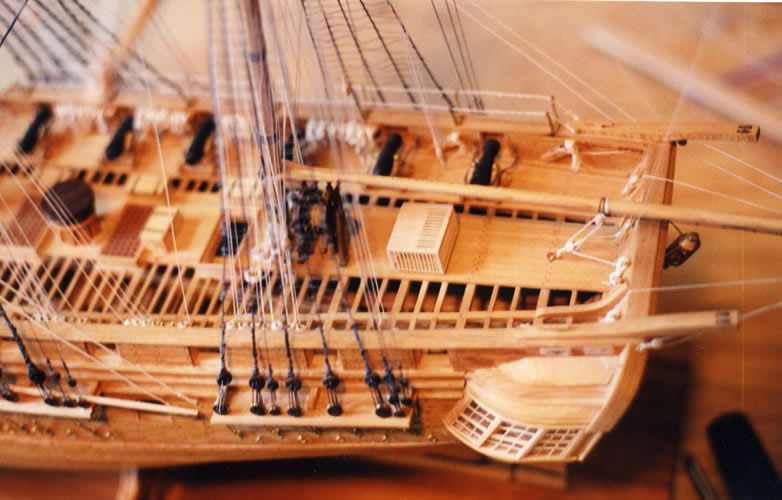

In these shots of the finished quarter deck you can see some of the additional detail added including several boxes for small-arms storage and even the chicken coop, abaft the wheel.

quarterdeck quarterdeck

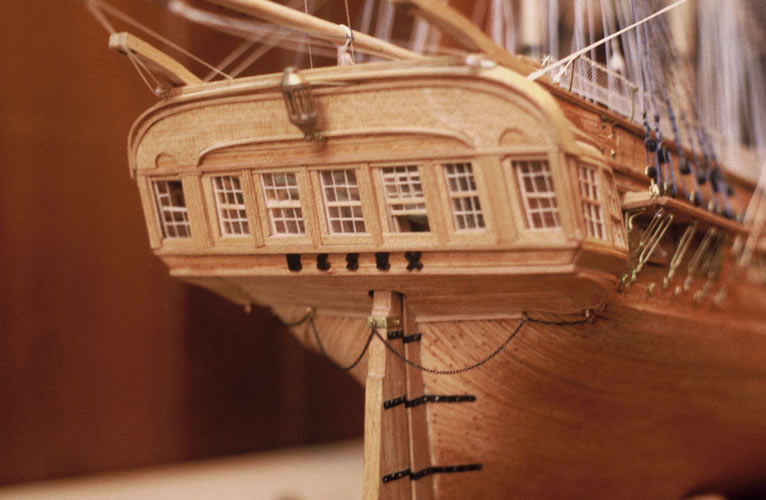

The transom, when completed. Actually, only nearly completed, as I damaged one of the sashes in the portmost transom window and had to replace it before calling it a wrap. So it goes.

finished transom

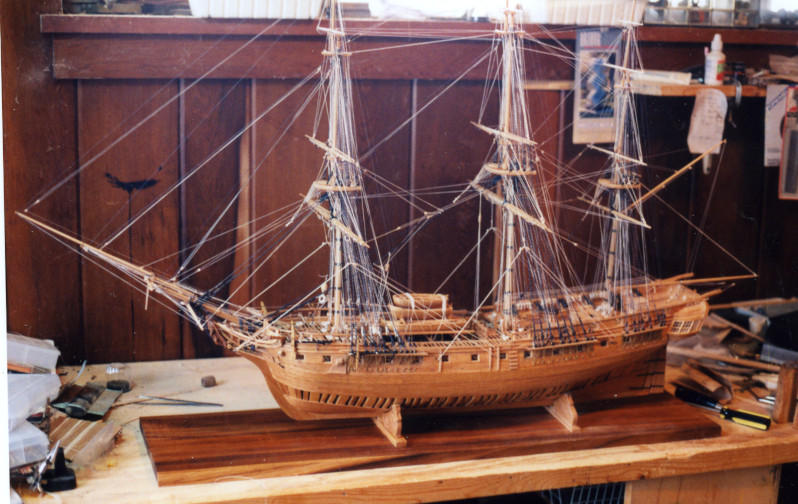

And here is a last shot of the model in the final stages of rigging on the work bench. This was taken in Ardmore, OK, in about 1998.

fully rigged model on the bench
