Colonial Frigate Raleigh (1776)

Raleigh Specifications (information from DANFS)

Length: 131' 5" (on gun deck)
Breadth: 34' 5"
Depth: 11'
Weight: 697 tons
Armament: thirty-two 12 pounder long guns and 10 6 pounders

For discussion of the model of Raleigh, click here.

One of the frigates of the continental Navy, Raleigh was authorized by the Continental Congress in December, 1775, laid down in March of 1776 and launched in May of the same year at the Portsmouth Navy Yard. Designed and built by Hackett, Hill, and Paul at the John Langdon shipyard on Badger's Island in Kittery, Maine, the actual location of the "Portsmouth" Naval Shipyard. The Raleigh appears on the great seal of the state of New Hampshire.

Great Seal of New

A Brief History of the Continental Navy and of the Raleigh

Jack of the Continental Navy 1776-77

The "Naval Jack" of the Continental Navy in 1776 - 1777.

Prior to the Declaration of Independence in Philadelphia, July 4, 1776, efforts by the colonies to develop a navy had already begun. The colonies had come together as a "Continental Congress, and it was the Second Continental Congress that wrote and ratified the Declaration of Independence. But the U.S. Navy dated its establishment from October 13, 1775, the date that the Continental Congress passed a resolution establishing the Continental Navy and authorizing the purchase of two vessels to be used against British shipping. Later that same year, the Congress authorized the recruitment of two battalions of marines for service aboard those vessels, and in December, 1775, the Congress authorized the thirteen frigates to be built for the new Navy. Prior to these actions by the Congress, individual colonies had purchased and armed merchant vessels for service against the British. The Royal Navy at that time was harassing American coastal shipping and blockading Boston.

The thirteen frigates were to be:
five ships rated at 32 guns (Hancock, Raleigh, Randolph, Warren, and Washington);
five ships rated at 28 guns: (Effingham, Montgomery, Providence, Trumble, and Virginia);
and three rated at 24 guns:(Boston, Congress, and Delaware).

Only eight frigates made it to sea.

Washington, Effingham, Congress, and Montgomery were destroyed in October and November 1777 before going to sea to prevent capture by the advancing British forces.

USS Virginia, ran aground trying to break through the blockade of Chesapeake Bay and was captured by the British in Hampton Roads, before making it to sea.

Those that did make it to sea had variable and limited success against the markedly superior British Navy. All were sunk, destroyed to prevent capture, or captured by 1781.

Raleigh first put to sea in August 1777 under the command of Thomas Thompson in company with the Alfred (24 guns), the first ship of the Continental Navy, a converted merchant vessel. The two ships sailed the Atlantic and captured several prizes, but in March 1778, while they were separated, the Alfred was captured by HMS Ariadne (20) and HMS Ceres (16). Thompson was accused of cowardice and dereliction of duty in the loss of the Alfred, relieved of command, and replaced by John Barry in June of that year.

In September 1778, Raleigh sailed in convoy for Portsmouth, VA. En route, they encountered the HMS Unicorn (26) and the HMS Experiment (50). Barry sent the merchantmen to port and drew off the enemy in a 7 hour running fight which ended when the Raleigh ran around. Barry evacuated the crew to shore and ordered a party to destroy the ship, but this order was thwarted by a Midshipman Jeacocks who struck the colors and surrendered the ship to the British.

After capture, Raleigh was refloated, repaired, surveyed and taken into the Royal Navy as HBMS Raleigh. She participated in the capture of Charleston, SC in 1780. In 1781 she returned to England and was decommissioned there and sold off in 1783.

As for the rest of the ships of the Continental Navy, which totaled over 60 vessels including those built for the navy, purchased, converted or otherwise brought into service, only about 11 remained at war's end, marked by the Treaty of Paris in 1783. The new Congress, burdened with debt and without resources to maintain a navy disbanded the Continental Navy in 1785 selling off the remaining ships with the last remaining ship, the frigate Alliance (36), sold in 1785. Originally named Hancock, Alliance was laid down in 1777 on the Merrimack River at Amesbury, Massachusetts, by the partners and cousins, William and James K. Hackett, launched on 28 April 1778, and renamed Alliance on 29 May 1778 by resolution of the Continental Congress. Alliance was thought by Congress to be the finest warship built to that date on the western side of the Atlantic. There was sentiment in Congress to keep the Alliance, but no money to do so. She was sold to a private buyer and convered to an East Indiaman by Robert Morris. He selected Thomas Read a former Continental Navy Captain as her master. Read took her to China by a new route and discovered two new islands while sailing through the Carolines which he namded "Morris" and "Alliance". The voyage to Canton and return to Philadelphia in 1788 were remarkably fast and successful. She is lost to history at that point, but sometime subsequently, when no longer servicable, she was run aground along the Delaware River across from Philadelphia where her timbers were visible at low tide until the early twentieth century.

Because she was a "prize" taken by the Royal Navy, Raleigh after initial capture was taken to England and "surveyed" - her lines were taken off and the vessel closely inspected and documented in order to assign a value to the ship. This value was then the basis for "prize money" distributed among the officers and crew of the vessel(s) which had captured the prize. It is because of this practice of the Royal Navy that there are today good plans of early warships built in the Colonies or the United States. Plans for the Raleigh, and the Essex, another, later 12-pounder frigate, archived in the British Admiralty were the basis for plans developed by Harold Hahn for the Raleigh and by Portia Takakjian for the Essex, that I used to build both models.

Notes on modeling the Raleigh (Hahn plans)

For photos of the completed model, click here.

The model is in 3/16” = 1 foot scale (1:64). It is built from the plans by Harold Hahn, based on the original plans in the British Admiralty, created at the time of the Raleigh's capture. The original Hahn plans are at 1/8”=1 foot (1:96) so I photo-enlarged them to the desired scale. I built the hull using the “Hahn method”, as described in his writings and for which the plan was created. This method sets up the frames and keel upside down on a building board. It requires that frames be extended upward when drawn to some standard straight horizontal that will correspond to the building board. The plans that Hahn sells has the frames all diagrammed to include the extension, so it is a fast way to learn this technique.

framing Raleigh

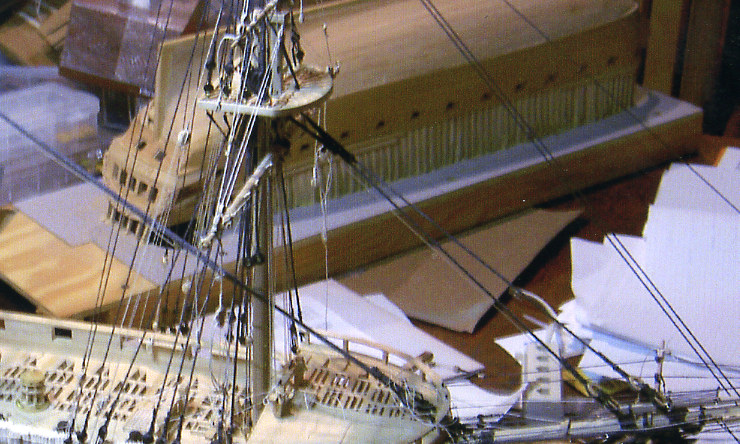

The picture above shows the model with planking completed on the building board. In the foreground is the Vandalia nearing completion. I always have several projects underway at the same time.

I discovered that the upside down technique has several advantages. First, it is a much easier and faster and stronger way to set up the frames. By securing (gluing) the stem and stern post (extensions) to the building board, the keel is set up and squared first. Then, the frames set up easily and can be squared readily as you work and do not wobble around as can happen when setting up more conventionally. Second, if you follow Hahn's instructions and cut out the center part of the building board and lay out the stations in pencil or marker on the board, it will further assist and make easy squaring up each frame as you glue it in. And, once all the frames are set up and the hull planked, you can leave it securely fastened to the building board if you like while you work on finishing the inside of the frames if you are adding interior detail, or simply want to fair the frames on the inside as well. And third, once the frames are glued to the keel and the building board base, the structure is very strong and is much easier to plank. And lastly, as Hahn points out, once the hull has been planked, if you leave it on the building board and build a box to fit it, you have an excellent container to store and protect your work in progress. In my case, Raleigh spent nearly five years in the box between building sessions

One reason for the hiatus in working on the Raleigh was, among other things, I had other models in progress. The Vandalia had been started before the Raleigh and it needed to be finished first, which happened in 2004. Also, around the same time, I started a model of the Constitution in 1:64 scale, mostly because I was interested in the differences between the "light" frigates such as Essex and Raleigh and the "heavy" frigates, such as Consitution, which was designed only about twenty years later. I thought having two hulls, one of each type, would illustrate the difference. Below is a photo of the hull of the Raleigh (off the board at last) and the Constitution, in the same scale, to show the contrast. Note also that the Constitution is set up on a conventional building board/framing jig. I don't do that much anymore.

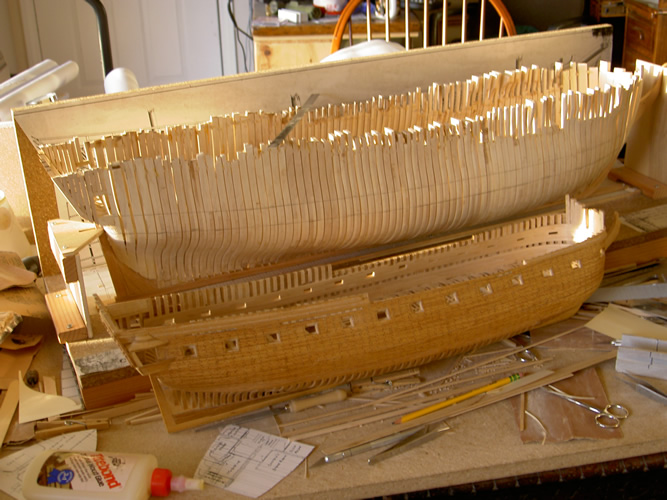

Hull models of the Raleigh
and Constitution

For the Raleigh model, frames, timbers, ceiling, trim pieces, head timbers, masts, spars, blocks and various miscellaneous wood parts (gun carriages) are hard maple. The hull is planked in red oak. As with the Vandalia, I planked one side of the hull and one side of the decks to expose the timber framing of the decks. Deadeyes, ship's wheel, and cannon were turned from lignum vitae, and some mahogany and walnut veneer was used in making interior cabin bulkheads. The fancy work on the transom and the trim of the quarter galleries were carved of boxwood as well the crew men. Metal fitting were fabricated from brass sheet and wire. The only purchased fittings used on the model are the belaying pins.

All the lines for the ship were made up of cotton threads and yarns spun and plied up into ropes and cables of appropriate diameter, using Steel's as a guide to sizing of cordage and also of blocks. For more information about making up the lines, including tables of my calculations for rigging size, listing of the actual yarns used, design of the rope machine, and tips on rope-making materials and technique, go here.

I made the sails from very light weight cotton cloth, and modeled some furled and some deployed. The "story" for the model is that she is shown leaving anchorage. The starboard anchors are stowed, and the forward portside anchor is aweigh at the cathead with crew passing the fish line through the ring for the final steps in securing and stowing the anchor. Aloft, topmen have released the foretopsail and another crew is unfurling jibs. Another group is bringing aboard the last of the ship's boats for stowage in the waist. On the quarter deck, the captain and his officers confer, and two marines stand guard at the forward end of the quarter deck. Although I have liked making models with half-planked hulls to show details of construction, over time I have gotten more interested in modeling the processes of sailing. The Raleigh is a step in that direction, but in retrospect, I perhaps should have planked the model completely and painted her to more realistically show what she might have looked like in action.

The Anchor Hoy, the Benjamin W. Latham, and the Constitution are later models, more properly considered dioramas, and made to show how things worked as much as what they looked like.

Following are some pictures of the model in progress and after completion.

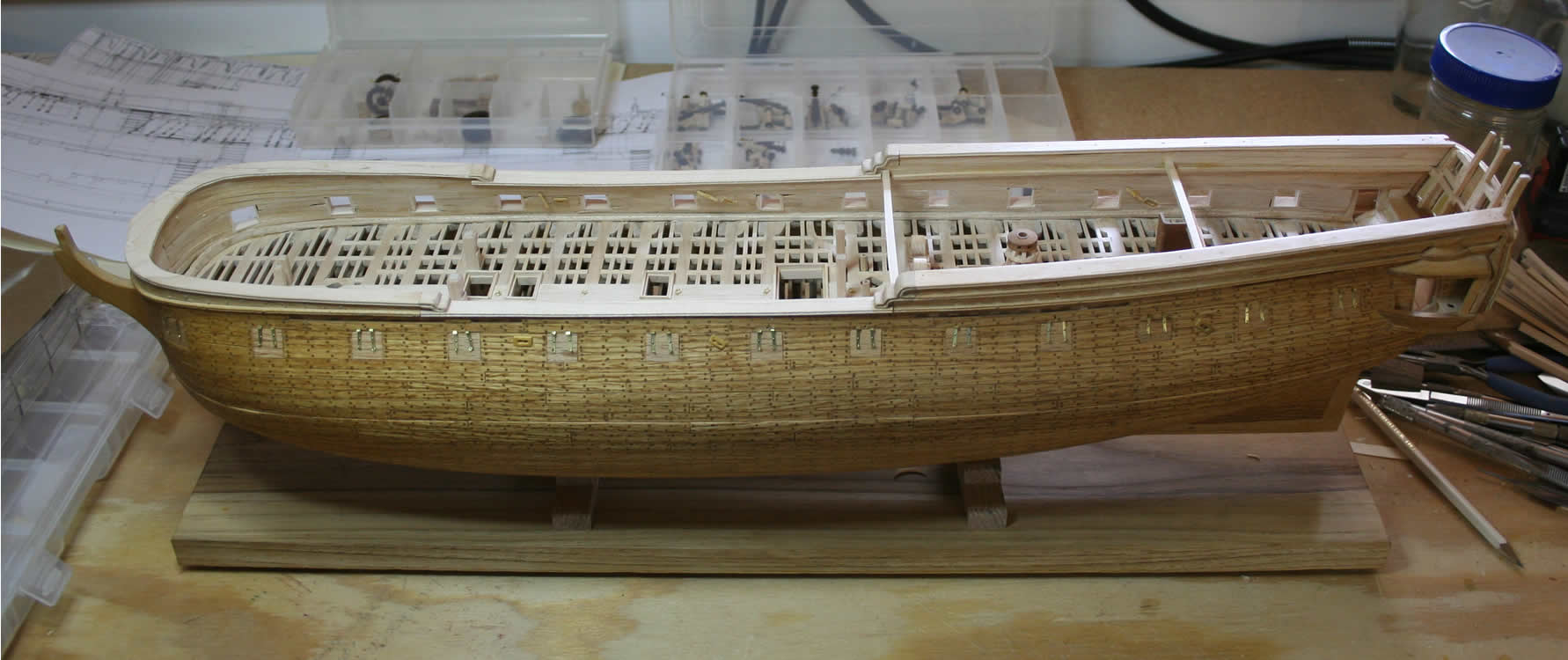

Raleigh hull
after cut free from building board

Hull of the Raleigh after cutting it from the building board and trimming the frame extensions close to the upper edges of the planking. Transom timbers are left long at this point as they will be used in framing transom windows and railing.

detail of
hull planking detail of
transom timbers

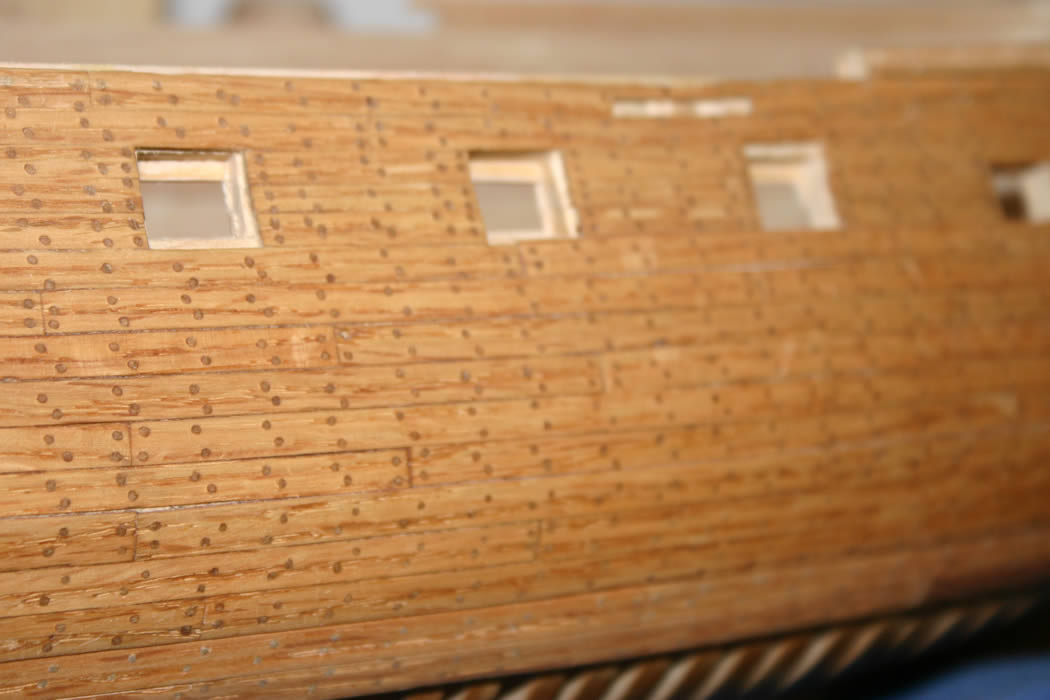

On the left is a close up of the hull planking. I use red oak for the planks, milled down to scale thickness of 4 inches on the prototype (1/16" on the model). I fasten the planks with waterproof yellow carpenters glue using wooden pegs to secure the individual planks as I move along. I make the pegs by splitting white wood tongue depressors (available in any craft store) selecting ones that split straight and do not have diagonal grain or weak spots. I split them down as I need them, to about 1/16 inch wide, then carve them to a long rounded point and hammer them in with a small lignum vitae mallet I made for that purpose. Depending on the model and the area I am working on (outside planking versus ceiling, for example) I use a drill size from #65 to #75 to drill the hole for the peg. This is a remarkably fast and secure way to plank a hull. With a little practice, and a glue with an open time of about ten minutes, I can install a plank completely by pegging each end and a couple of frames in between, then move on to the next plank, at least when working on a fairly straight run. Later I go back and peg the plank down to every frame as shown. As I work, I check the plank width and taper planks as needed to keep a full run fore and aft for each plank. This is also a good technique when you are putting planks on a curved surface, as the pegs hold very securely and almost eliminate the need for clamping. The technique is less useful on hulls which are plank on bulkhead, as the long runs between bulkheads are a problem, but for a model with proper framing, it is just about perfect. Also, I think part of the reason the pegs hold so well might be that the glue used is water based, so the wooden pegs likely absorb some moisture and swell a little resulting in a tight fit. That plus the fact they are hammered home.

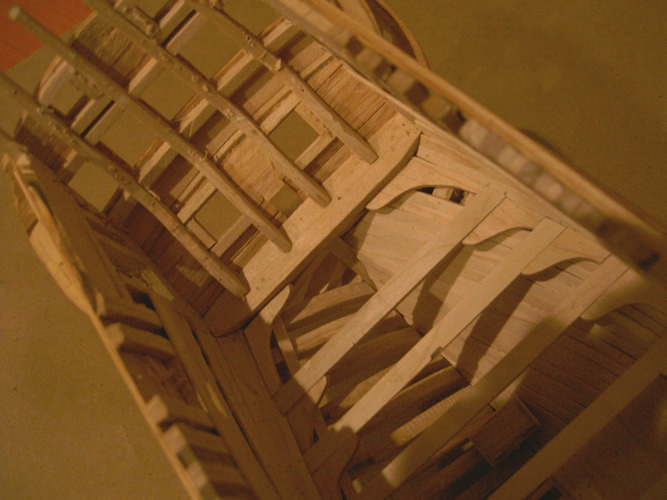

On the right is a photo of the stern/transom timbering at a later stage of construction. The berth deck timbers are in place and the transom has been planked and the fancy work applied, but you can see how the transom/stern timbers are used to frame the windows, and later, extended up to form the railing.

first transom
of maple replacement transom
of boxwood

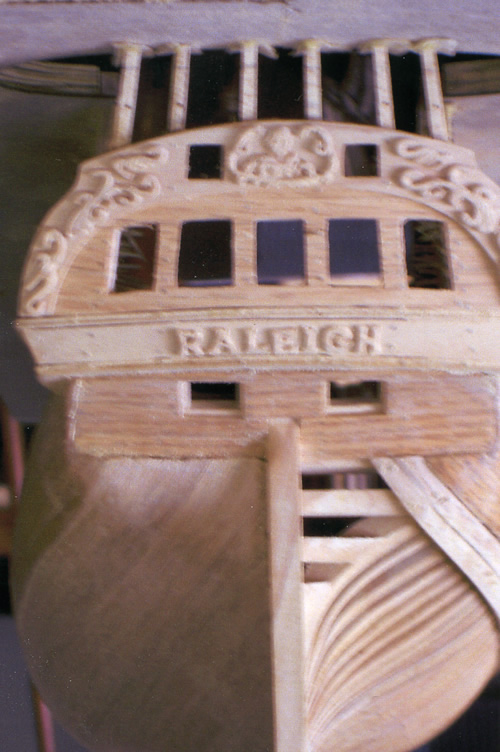

On the left is the original transom with detail and fancy work carved from maple. Note also that in that photo, the hull is still glued to the building board.
On the right is the replacement transom and trim carved from boxwood. An improvement, no doubt. I find that boxwood is unsurpassed to holding fine detail and have pretty much converted to using it whenever fine work is needed, including head timbers and figureheads. My boxwood supply came to me when a neighbor in Virginia asked to borrow my chain saw to cut down some boxwood shrubbery at the front of their house. Since I don't loan tools, especially chain saws, I responded that I don't loan tools, but do rent them, and a man comes with the tool And in this case, the rent would be that I would get to keep the boxwood stems for my wood supply. A good trade, as in the ensuing nearly twenty years, I have not used even 10% of my stash.

berth deck timbers
berth deck breasthook

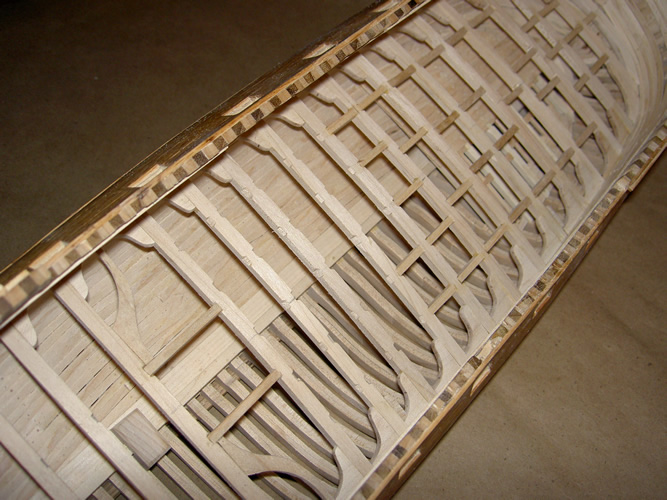

The photo on the left shows the timbering of the berth deck underway. The main timbers are in place, and the carlings and half timbers being installed. Note the notches in the large timbers, which accomodate the tapered ends of the smaller timbers for a secure joint.

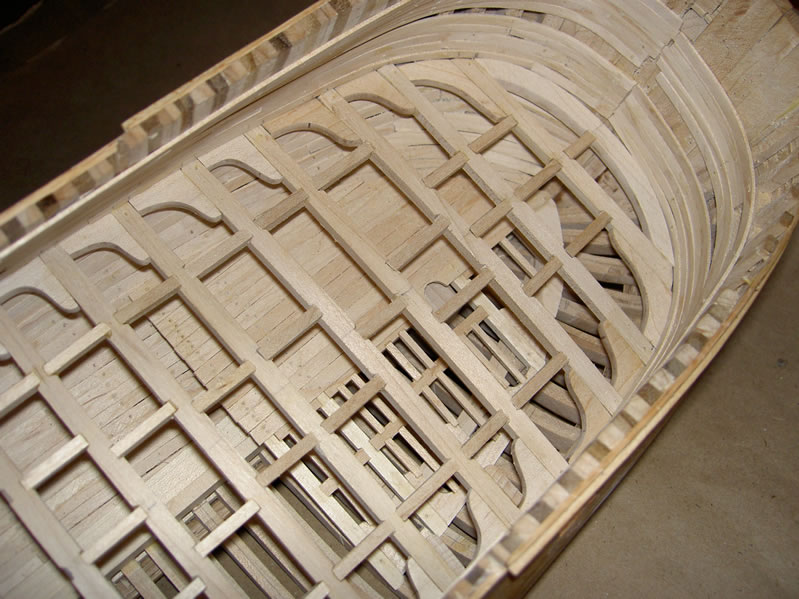

On the right you can see the breasthook for the berth deck in place. Also, you can see some deck timbers below the berth deck, which is the orlop, a deck which did not extend the length of the hull. Once all the timbering is complete, I install hatch coamings and any other needed timbers and plank half the deck.

berth deck
timbering complete start of
gun deck timbers

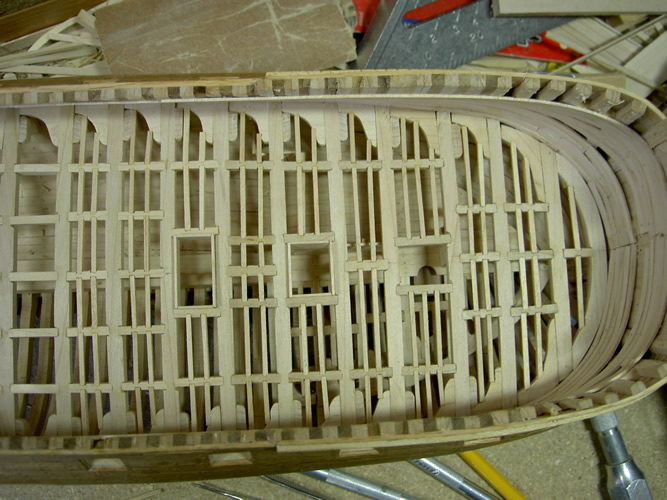

On the left there is a picture of the berth deck timbering completed, hatch coamings in place, deck ready for planking.

On the right, the much larger deck beams of the gun deck are installed above the berth deck, which has been half-planked.

main timbers
of gun deck

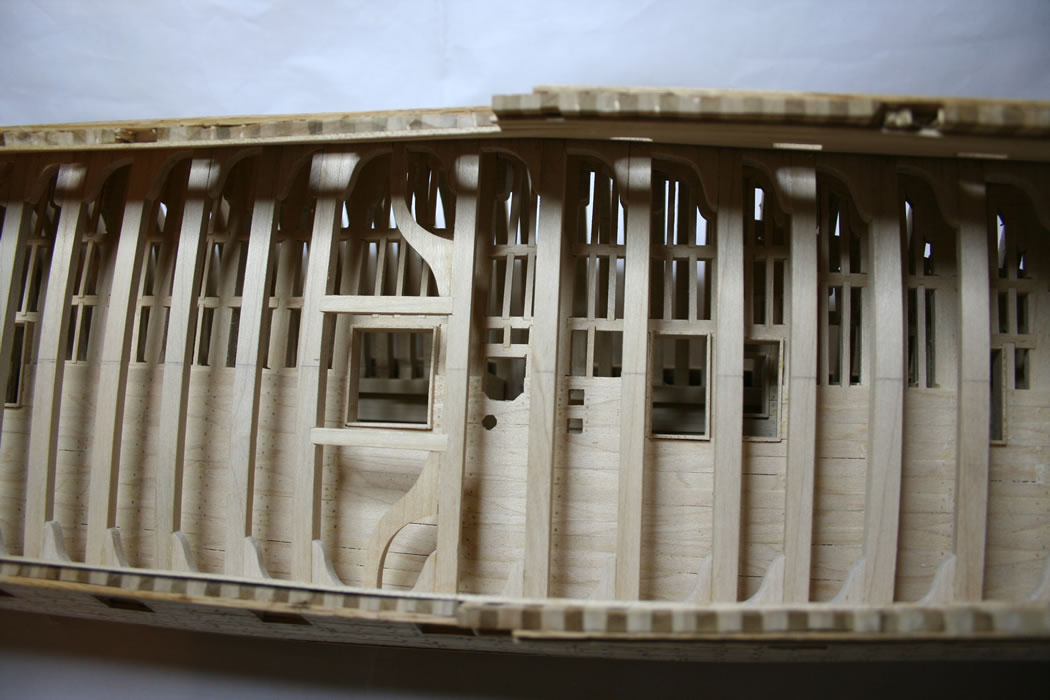

All the main timbers of the gun deck are in place. Next step is to install all the intermediate timbers between the main timbers, then add timbers for bitts, coamings, planking and so forth.

after gun deck planked

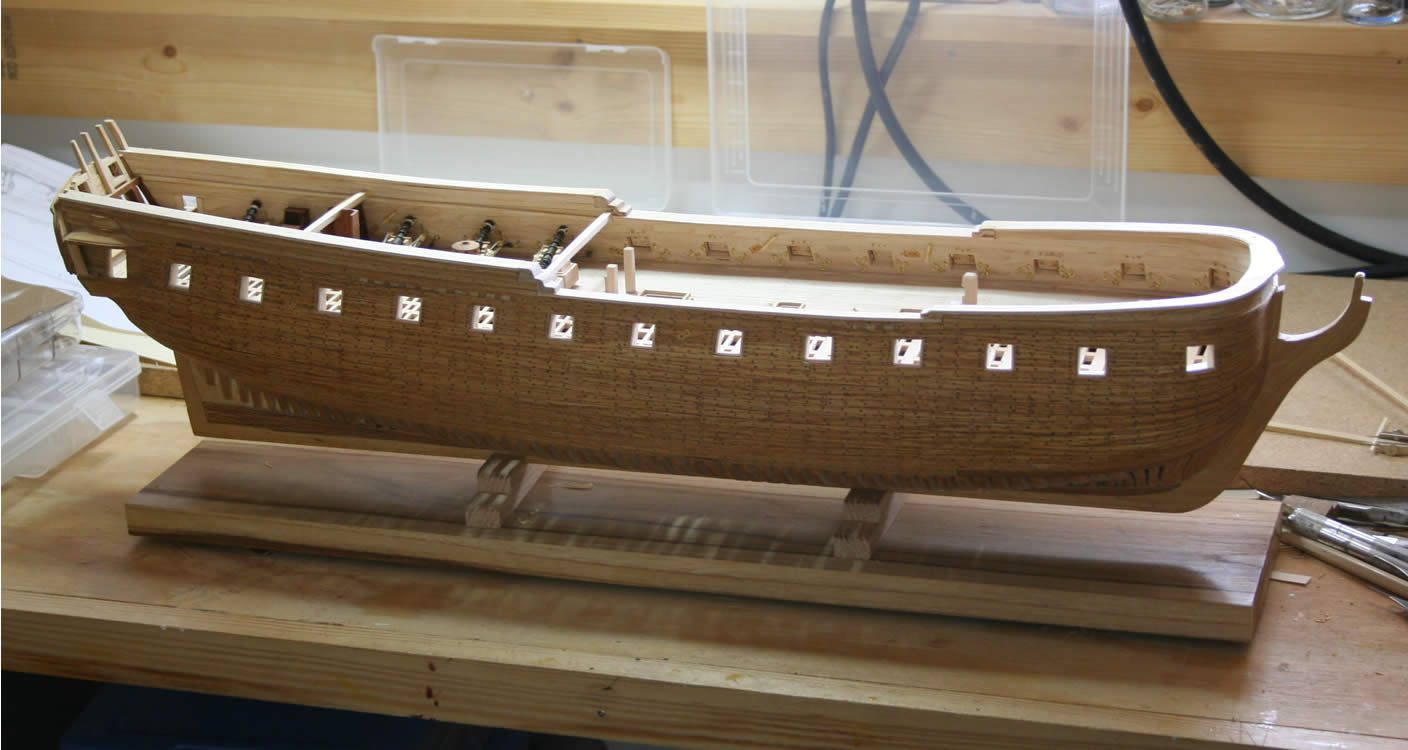

A picture of the model with the gun deck half planked and various detail added: coaming, capstan, bitts, etc. Since the gun deck was uncovered in the ship's waist, now is the time to add detail to that part of the model. Also, some finish work has been done in the area that will be the captain's cabin, including the rudder trunk and an interior bulkhead.


Another picture from the same date shows some additional detail. Guns are installed in the portion of the gun deck that will be under the quarter deck and will be shortly installed in the area beneath the forecastle. First railings are on and construction of the quarter galleries has begun.

guns below
the quarter deck captain's

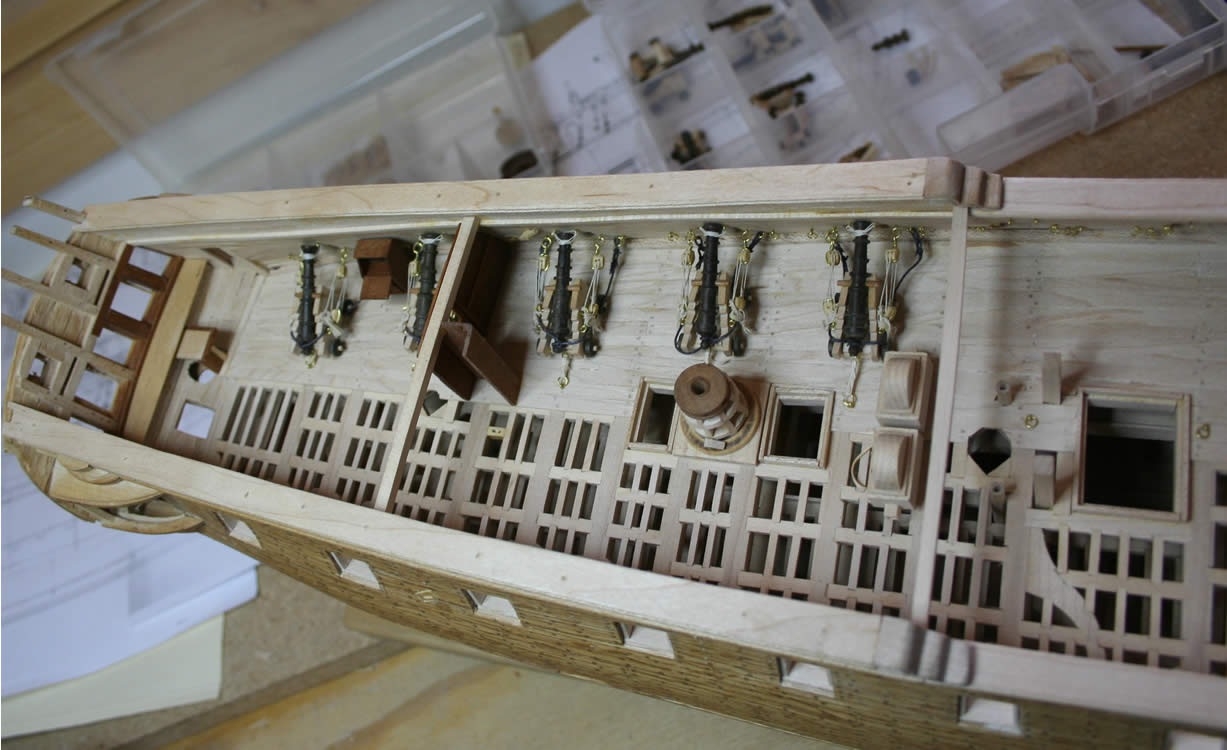

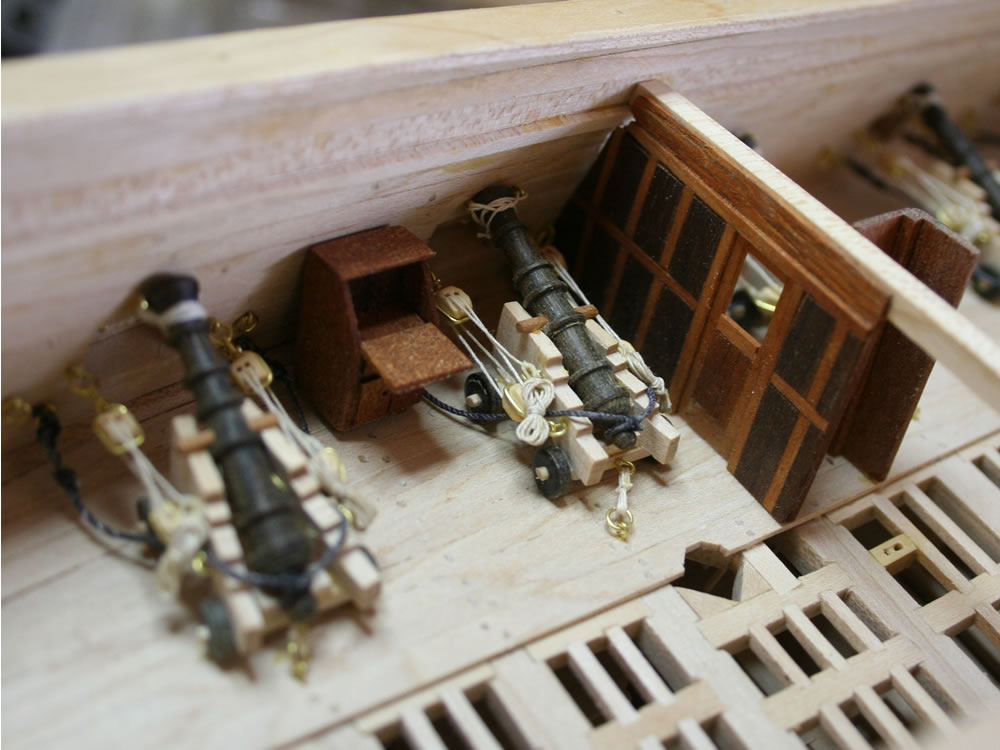

Two shots of the detail in the cabin which will be covered by the quarter deck. On the left you can see the guns in place, framing around the transom windows, the rudder trunk cover, pumps, lower capstan, and so forth. On the right is the interior bulkhead separating the captain's cabin from the general cabin and the captain's small writing desk between the two cannon. Most of these details will not be visible once the quarter deck is in place and partially planked.

view of
quarterdeck and mainmast

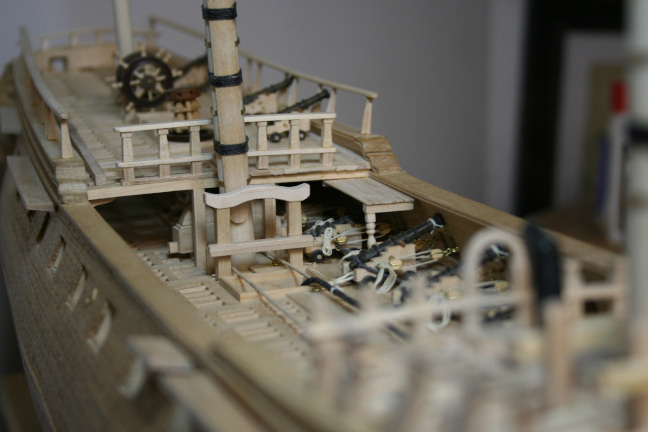

View of the deck at the main mast looking at the quarterdeck. You can see the wheel, the upper capstan, and the several six-pounder cannon on the quarterdeck. There were also two on the forecastle. The hull is pretty much complete and ready to start the rigging.

The Completed Model

finished model
from astern Model in case

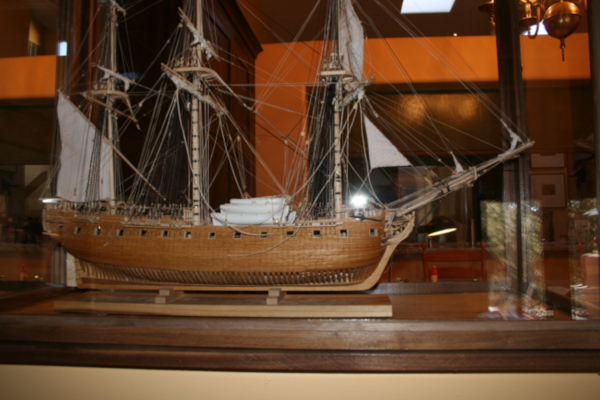

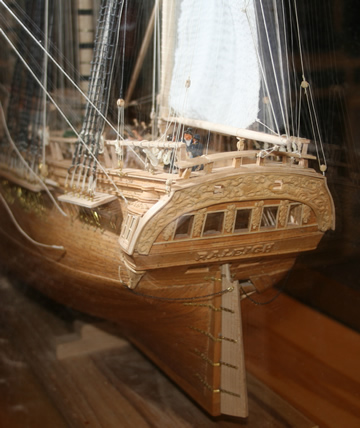

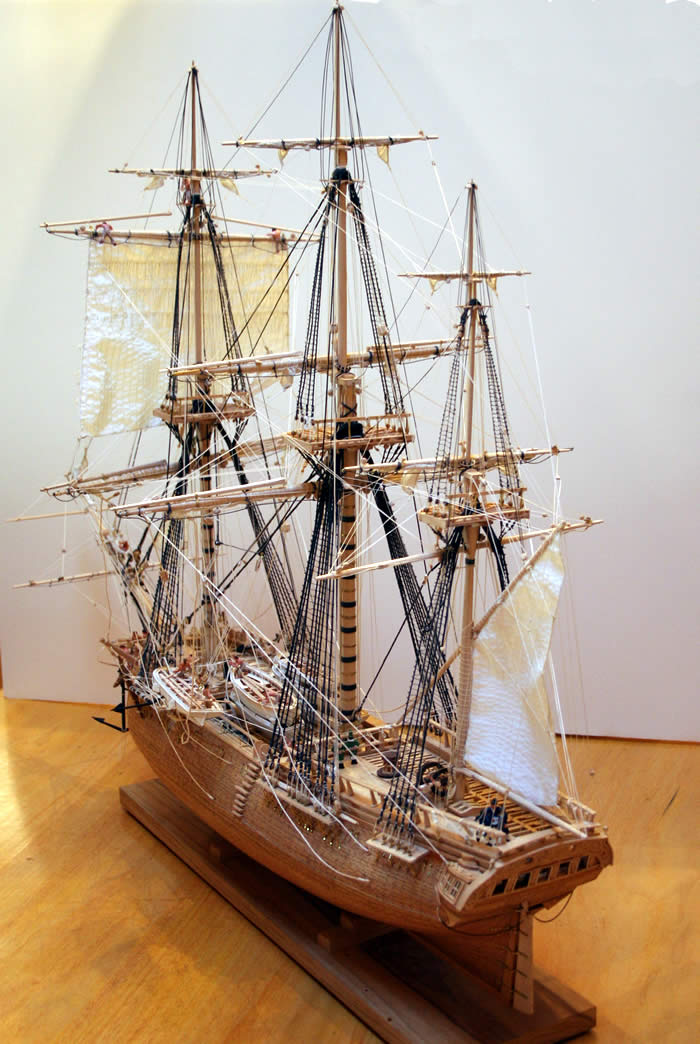

Views of the completed model. On the left, on the table top. On the right, in her case. The case is walnut framed and has LED lighting in the top. I make my cases myself and always make sure there is good ventilation and use LED lighting that does not emit UV wavelength light.

Photo of the
portside bow of the finished model fishing the anchor

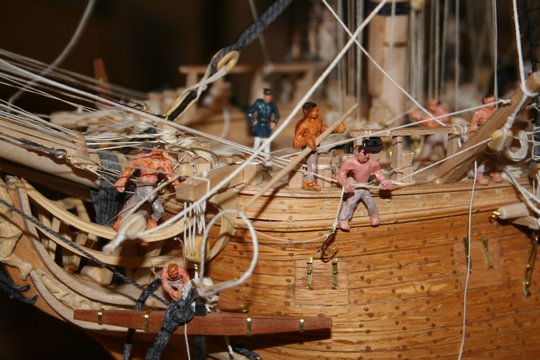

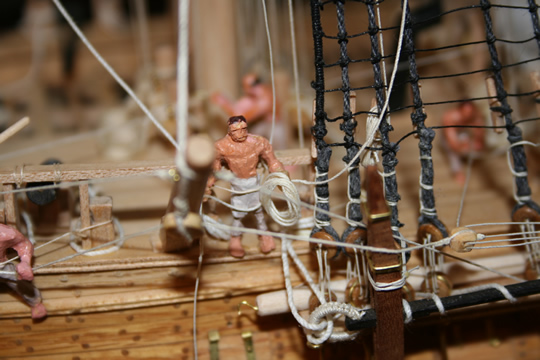

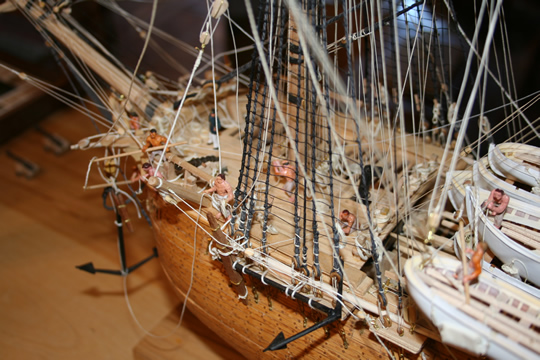

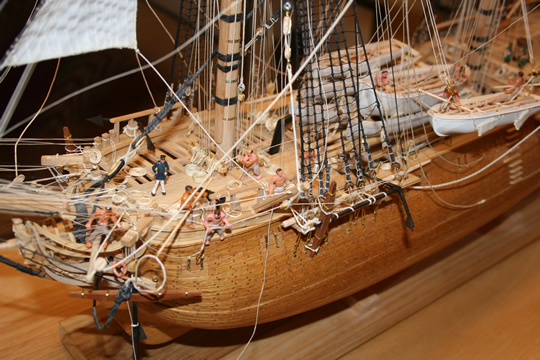

A general shot of the bow with activity related to retrieving and stowing anchors. On the right, two men are passing a heavy line through the anchor ring preparing to secure it while a third man stands on the edge of the rail, with the fish line ready to hook the anchor shaft to haul it up and against the hull. The man with the fish has a line passed around him to prevent falling overboard. The fish line passes through a block on the "fish davit" then back to a tackle with the hauling end led inboard so the men can haul up the heavy anchor and stow it on the channel.

the anchor buoy hauling in the

Just aft of the man fishing the anchor, another crewman has retrieved the anchor buoy and is coiling the anchor buoy line to stow it. Note the lashing securing the second portside anchor to the channel.
The right side picture shows a general view of all the activity around retrieving the anchor. There is a midshipman standing on the forecastle deck "supervising" the work of the crew.

activity on the forecastle unfurling
the jib

Another shot of the general activit on the forecastle when weighing anchor and preparing to sail. A crew member is on the bowsprit doubling with the jib boom unfurling the jib as the ship catches the wind and wants to gain speed so she will answer her helm.

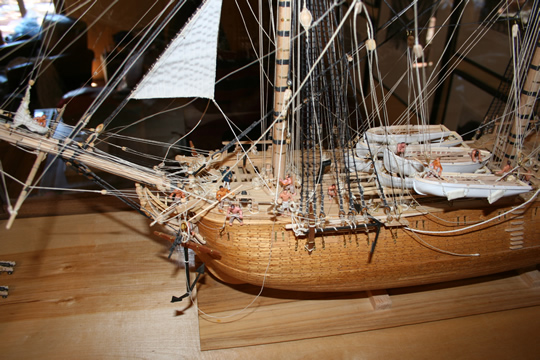

ships boats unfurling
the fore topsail

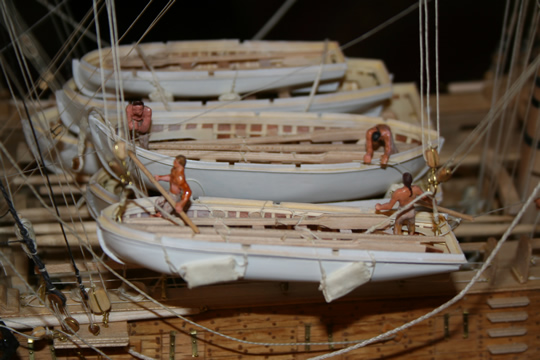

Meanwhile, crewmen are bringing aboard the last ship's boat, which has just brought the last officers and crew on board. The boat is hauled aloft using the lifting tackle on the fore and mainmast and swayed inboard to be lowered on the stack of boats in the waist of the ship.

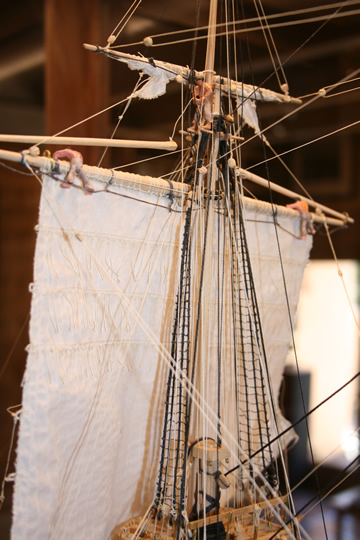

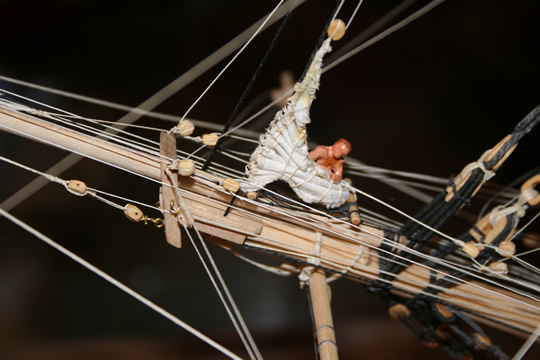

And the top men are finishing up after releasing/unfurling the fore topsail by coiling and stowing the line used to furl the sail. Another crewman is holding aloft the stunsail boom to keep it out of the way.

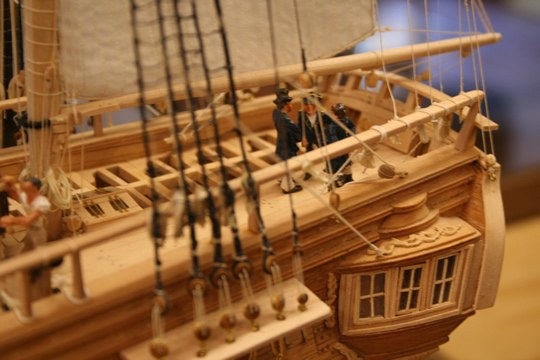

meeting with officers view of stern

The captain meets with the first mate and sailing master on the quarterdeck.
